Turned seals MANUFACTURING

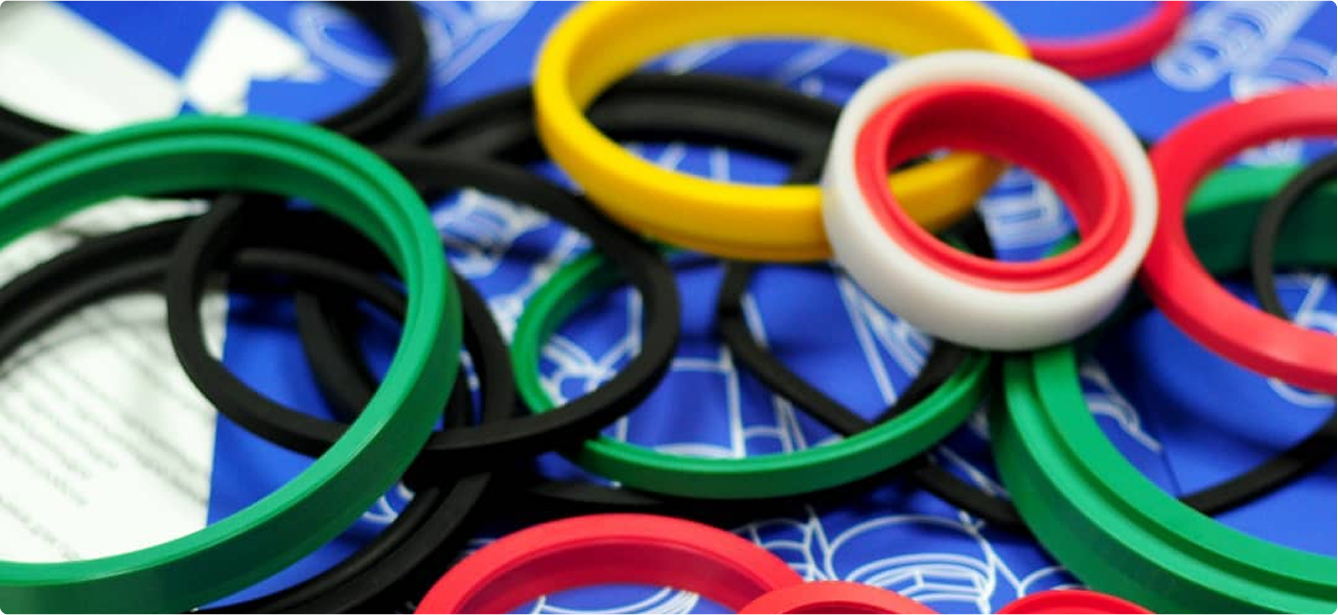

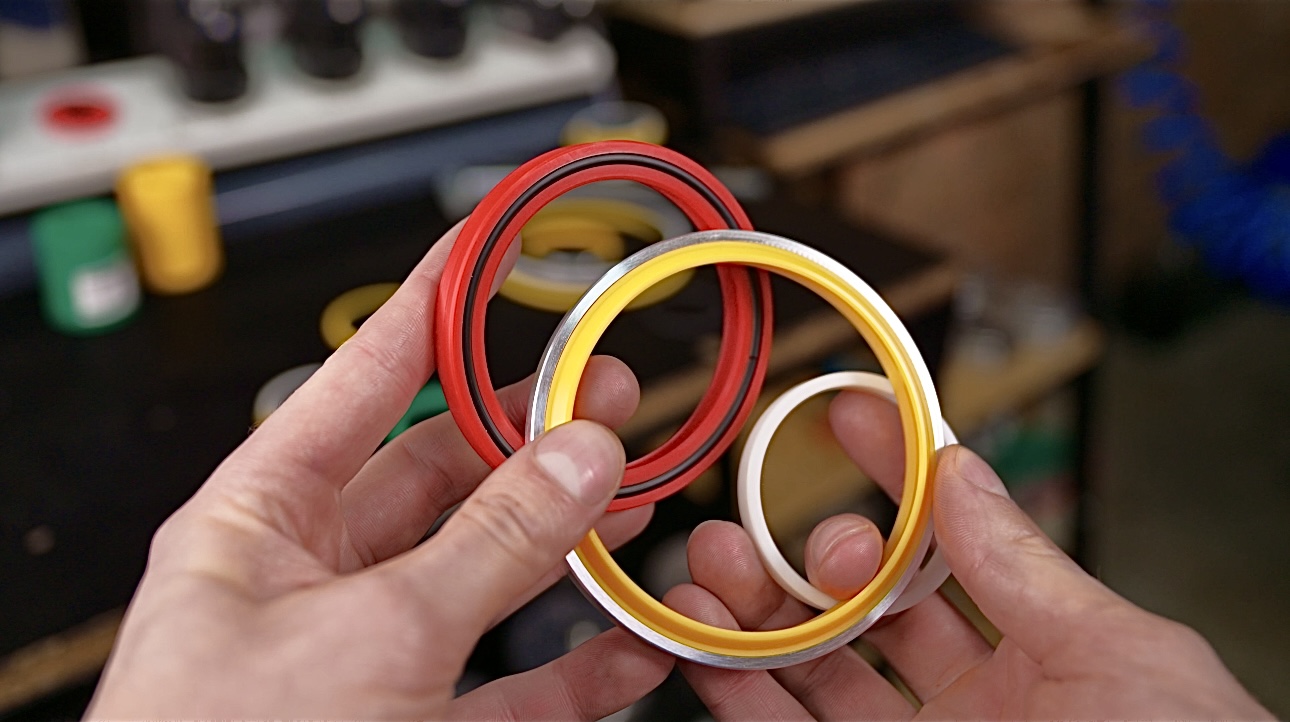

Hydrohouse manufactures sealing rings of various types:
- Wiper
- Rod seals
- Back up rings
- Guide rings
- Rotary shaft seals
- Gasket
- Piston seals
In addition, Hydrohouse offers tools for working with seals. For example, calipers for
determining ring diameters help accurately measure seal sizes. Tools for compressing cuffs simplify the
installation process. Hook sets for removing rings and cuffs make it easier to dismantle old seals.
Thanks to cooperation with leading European manufacturers and the use of high-quality
materials, Hydrohouse guarantees the reliability and durability of its sealing products.
INDUSTRIES WE SERVE
-
Chemical industry -
Food and processing industry -
Pharmaceutical industry -
Startups in machinery and equipment sectors -
Logistics and transport operators -
Municipal services and city enterprises -
Wholesale suppliers and distributors -
Road and highway construction organizations

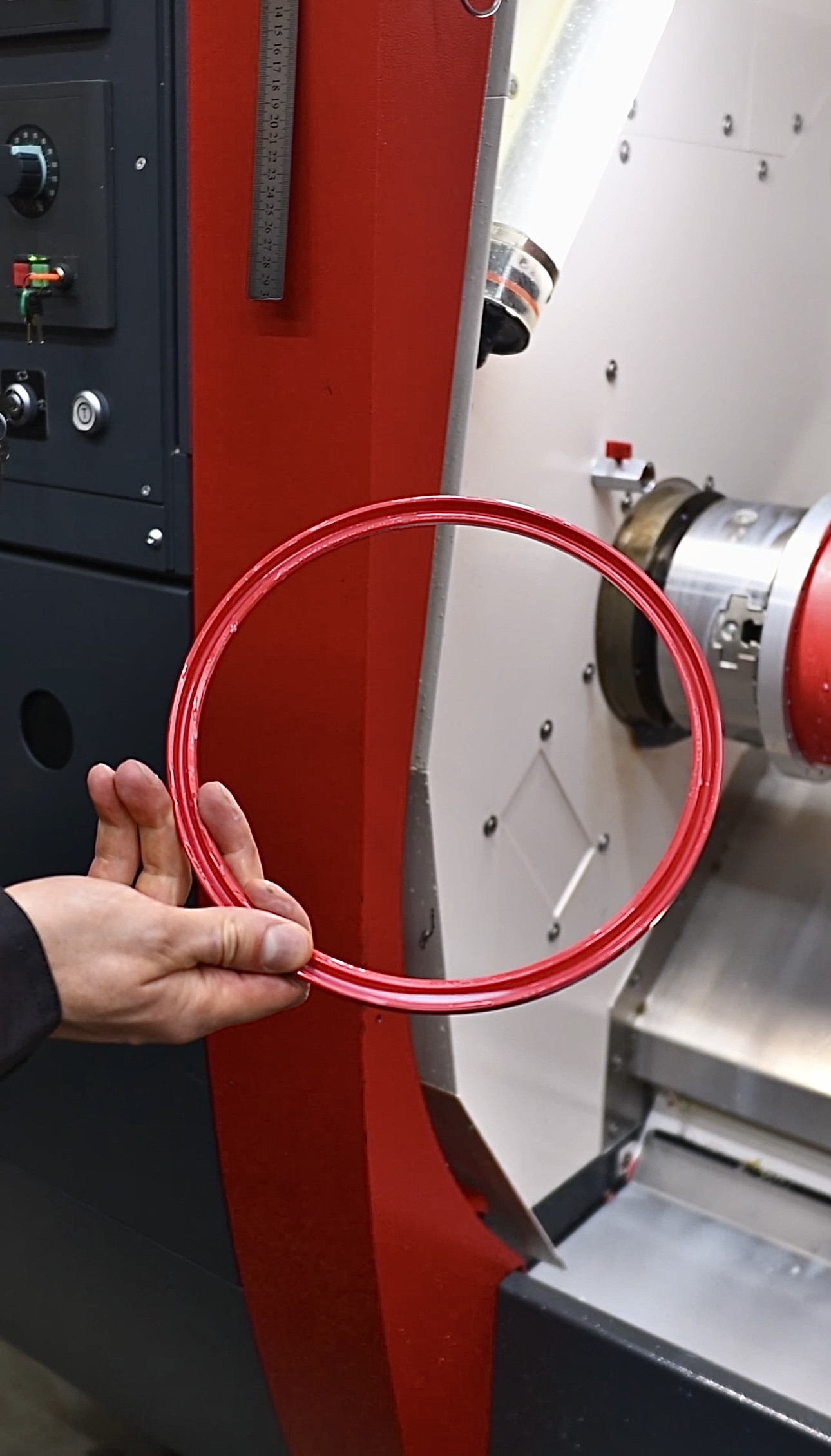

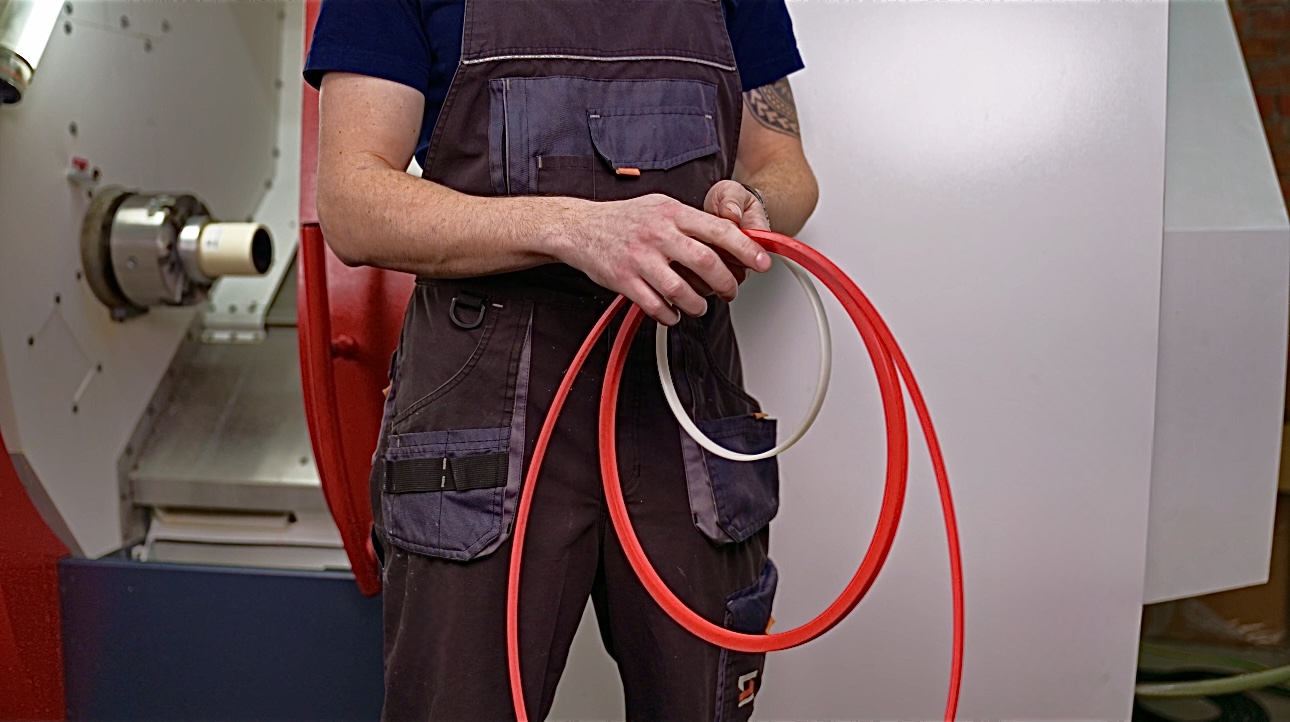

Turned seals for hydraulic cylinders and materials for them

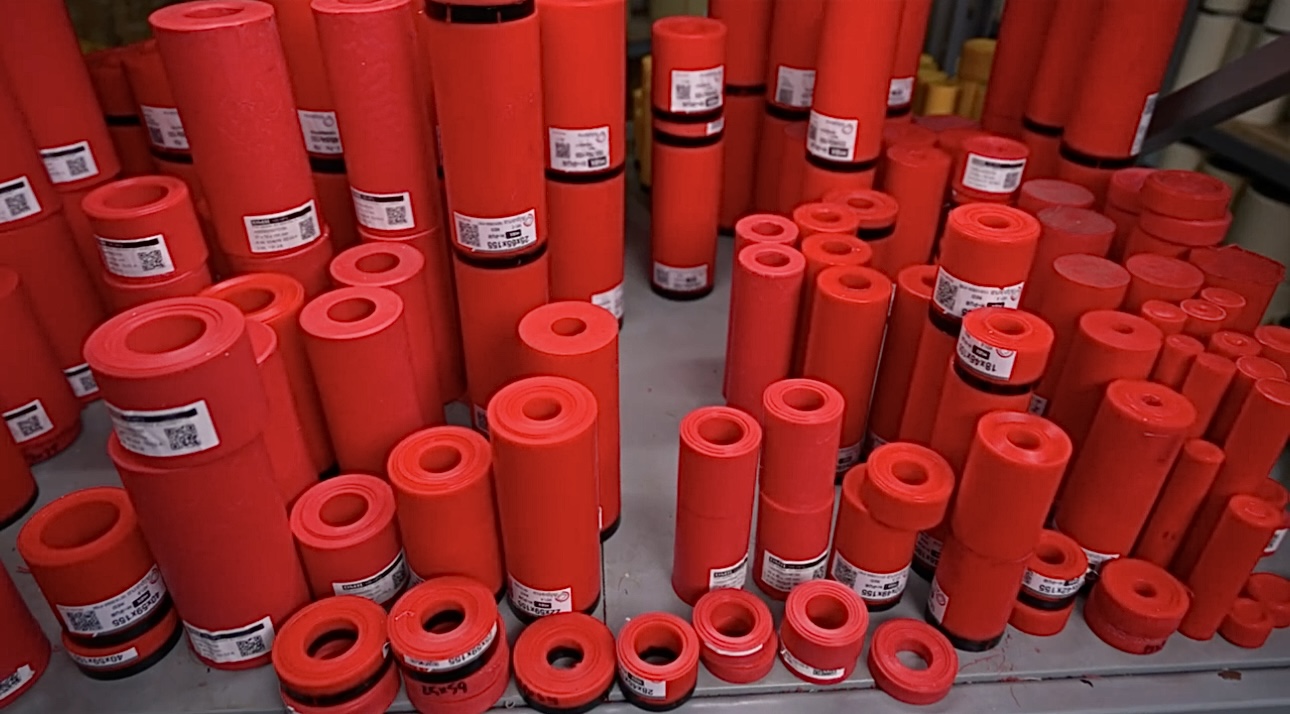

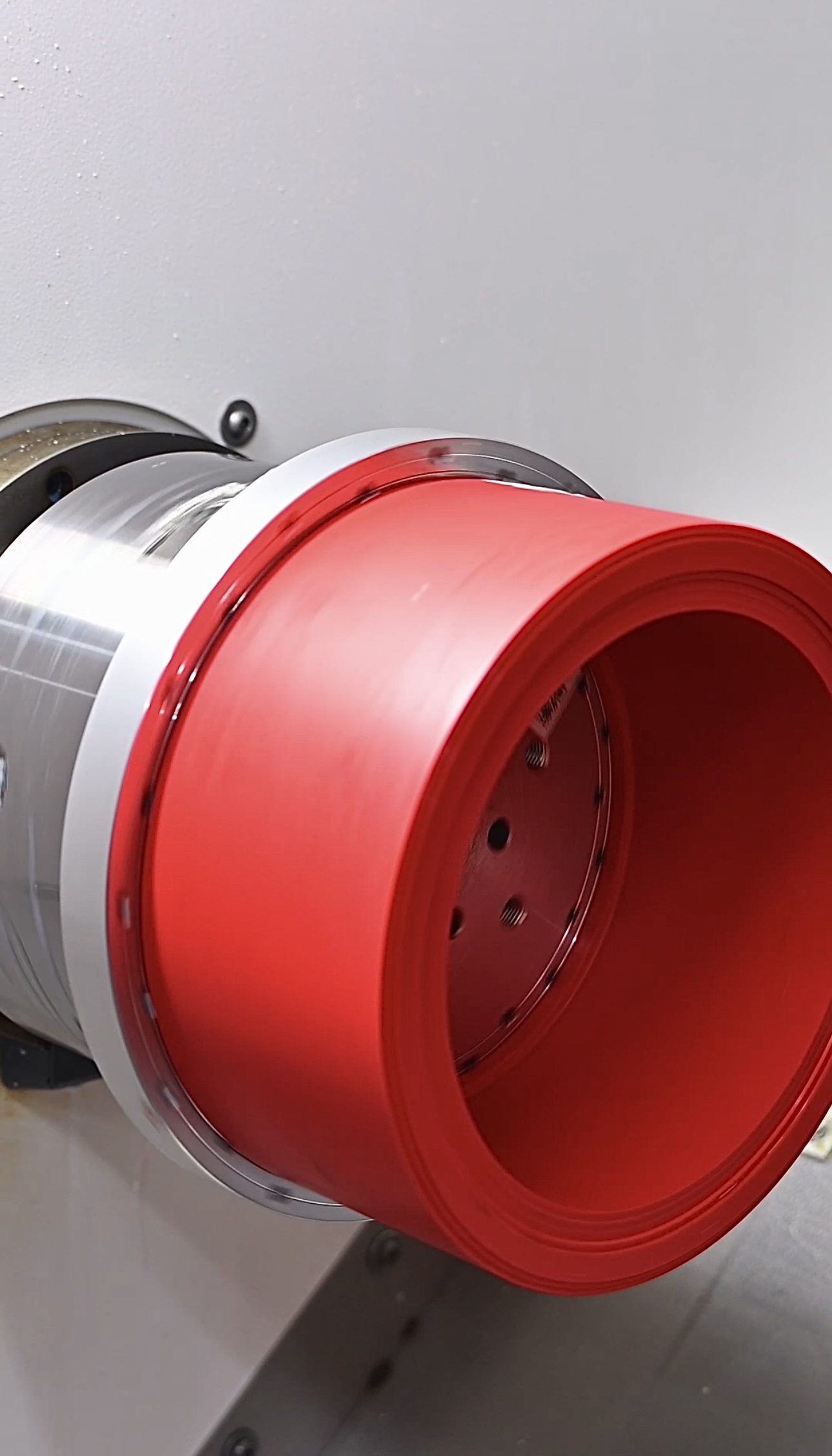

Turned seals are special elements for sealing working surfaces in hydraulic cylinders, manufactured by mechanical processing (turning) from polymer or elastomer blanks. They are used to prevent working fluid leakage, protect from dust, compensate for pressure and vibrations, as well as reduce friction and wear in the hydraulic system.
The advantage of turned seals is that they can be manufactured to individual dimensions and specific operating conditions, which is especially important for repairs and non-standard equipment.
Materials and application areas
- NBR
- H-NBR
- FPM
- EPDM
- PU 93 Green
- HPU 55/ U2 Yellow
- HPU/U2
- LT-PU
- PTFE rein
- PTFE 1
- PTFE 2
- POM
- MVQ
- Order a service
NBR (nitrile rubber)
Resistant to oils and fuels, good elasticity, limited resistance to ozone and chemicals.
Application areas
Standard hydraulic cylinders, agricultural machinery (tractors, presses, combines), construction machinery (excavators, loaders), trucks, mobile cranes.
H-NBR (hydrogenated nitrile rubber)
More resistant to high temperatures, ozone, oils and chemicals compared to conventional NBR.
FPM (fluororubber, Viton®)
High chemical resistance, withstands fuel, oils, acids, ozone and high temperatures.
Application areas
Equipment in aggressive environments: drilling rigs, oil production platforms, chemical reactors, hydraulic cylinders in aviation and energy, engines and pumps.
EPDM (ethylene-propylene-diene rubber)
Excellent resistance to water, steam, ozone and glycol-based brake fluids. Incompatible with mineral oils.
Application areas
Hydraulic cylinders working with water or steam, power equipment (boilers, turbines), brake systems, water treatment and transportation equipment.
PU 93 Green (standard polyurethane)
High wear resistance, good strength and elasticity.
Application areas
Standard seals in mobile hydraulics: excavators, cranes, lifts, logging machines, agricultural units.
HPU 55/ U2 Yellow
Polyurethane of increased hardness, depending on the hardness of the polyurethane, friction and wear are reduced. In many cases, it can be a better choice than PTFE/
Application areas
Scrapers, two-component cuffs (ds 129, dk 108). Heavy machinery and mining industry, metallurgical equipment, high-pressure hydraulic cylinders (presses, hydraulic shears).
HPU/U2 (high-performance polyurethane)
Increased strength, withstands impacts, high pressure and pulsations.
Application areas
Heavy machinery and mining industry, metallurgical equipment, high-pressure hydraulic cylinders (presses, hydraulic shears).
LT-PU (low-temperature polyurethane)
Modified polyurethane, designed for operation at low temperatures.
Application areas
Equipment used in low-temperature conditions.
PTFE rein (fluoroplastic, Teflon)
Extremely low coefficient of friction, chemically inert, does not absorb moisture. Suitable for interaction with food products.
Application areas
Food and pharmaceutical industry (filling lines, presses), high-speed hydraulic cylinders in metalworking, equipment in aggressive environments.
PTFE 1 (with filler –15% glass and MOS 5%)
Increased wear resistance, less deformation under load, good dielectric properties.
Application areas
Piston seals in industrial presses, guide rings in hydraulic manipulators, durable systems in metallurgy and energy.
PTFE 2 (with filler – 40% bronze)
Reduced friction, better operation without lubrication, resistant to high sliding speeds.
Application areas
Seals for high-speed cylinders (robotics, automated lines), chemical industry, vacuum equipment.
POM (polyacetal)
Rigid engineering plastic, high dimensional stability and abrasion resistance.
Application areas
Guide rings, support elements in hydraulic cylinders, bushings in mobile hydraulics, parts in food equipment and precision mechanisms.
MVQ (silicone)
High heat resistance, excellent elasticity at low temperatures, but low mechanical strength.
Application areas
Medical and food equipment (sterilizers, food processing machines), refrigeration equipment, vacuum installations, seals in devices for operation at extreme temperatures.
SEALS THAT WORK FOR YOU
We manufacture and deliver across Ukraine. Reliability — guaranteed.
MORE ABOUT HYDRAULIC SEALS FROM HYDROHOUSE
8 key advantages of sealing rings by Hydrohouse:
-
Seal specialization
Hydrohouse specializes in the production and supply of sealing rings for various hydraulic and pneumatic systems.
-

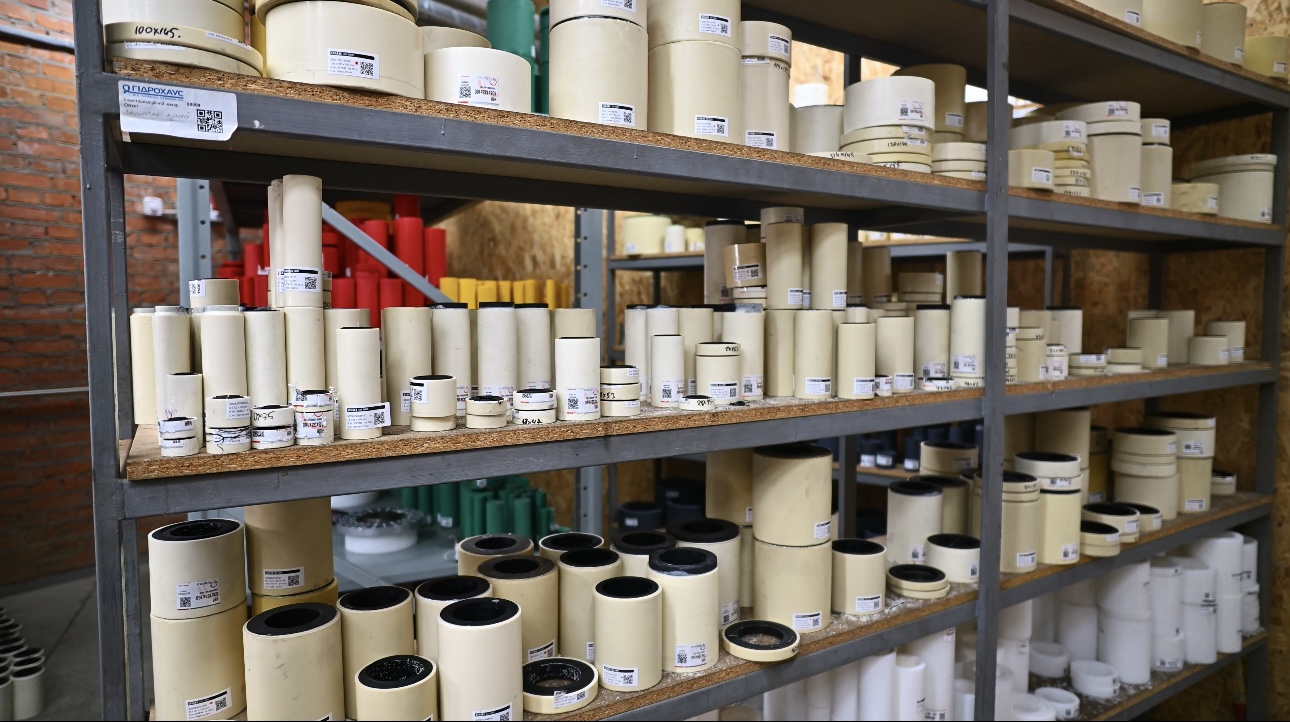

High-quality materials
In production, we use materials from leading European manufacturers, which ensures durability and reliability of the products.
-

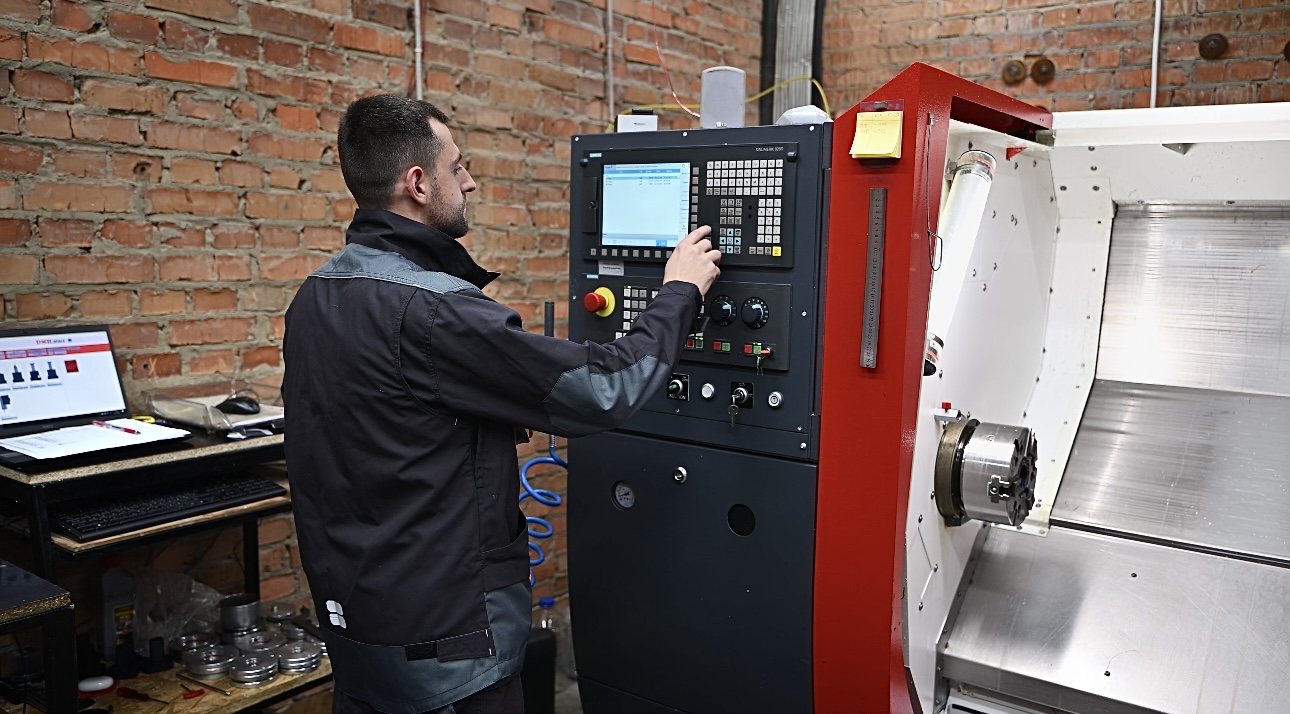

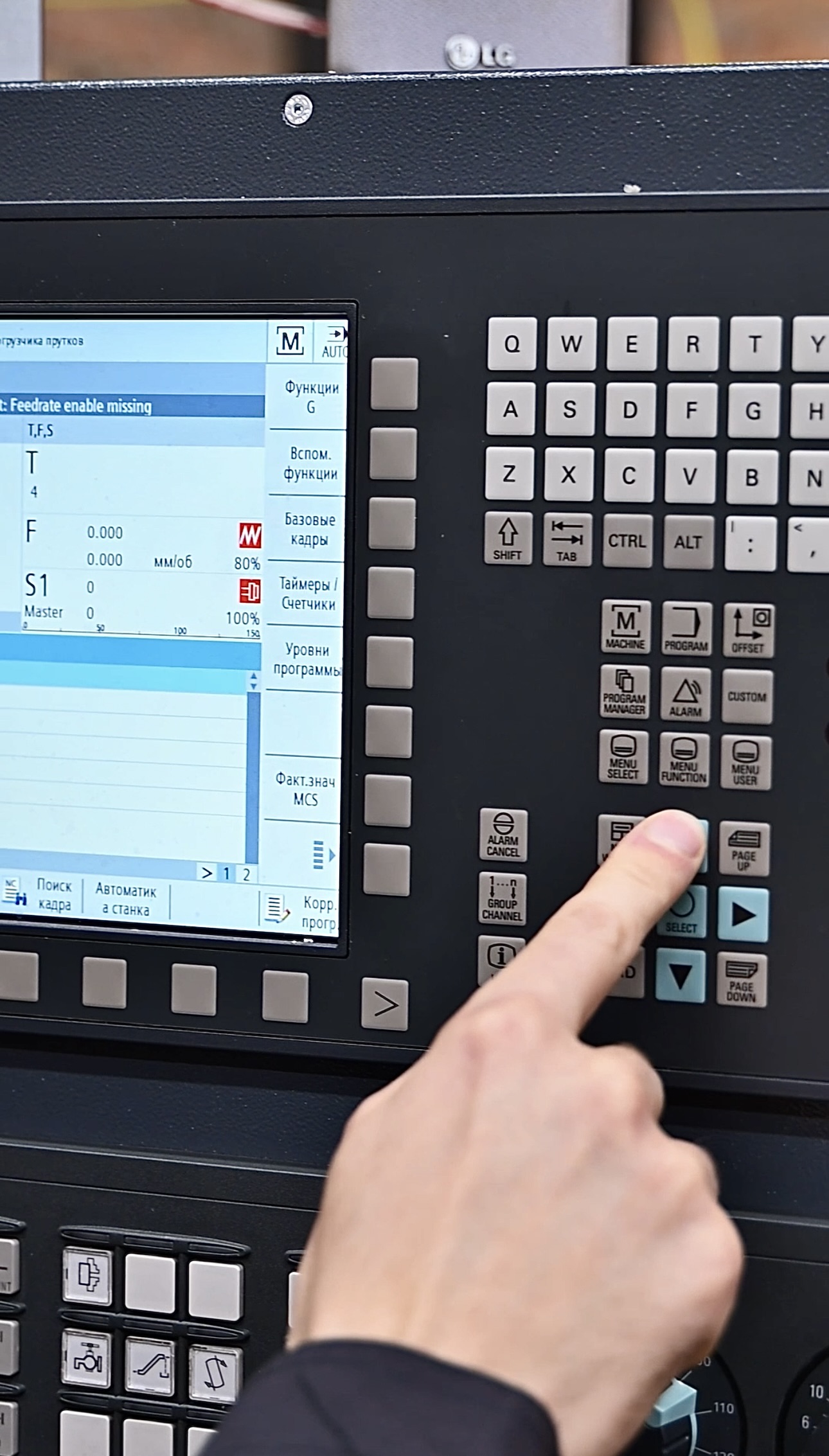

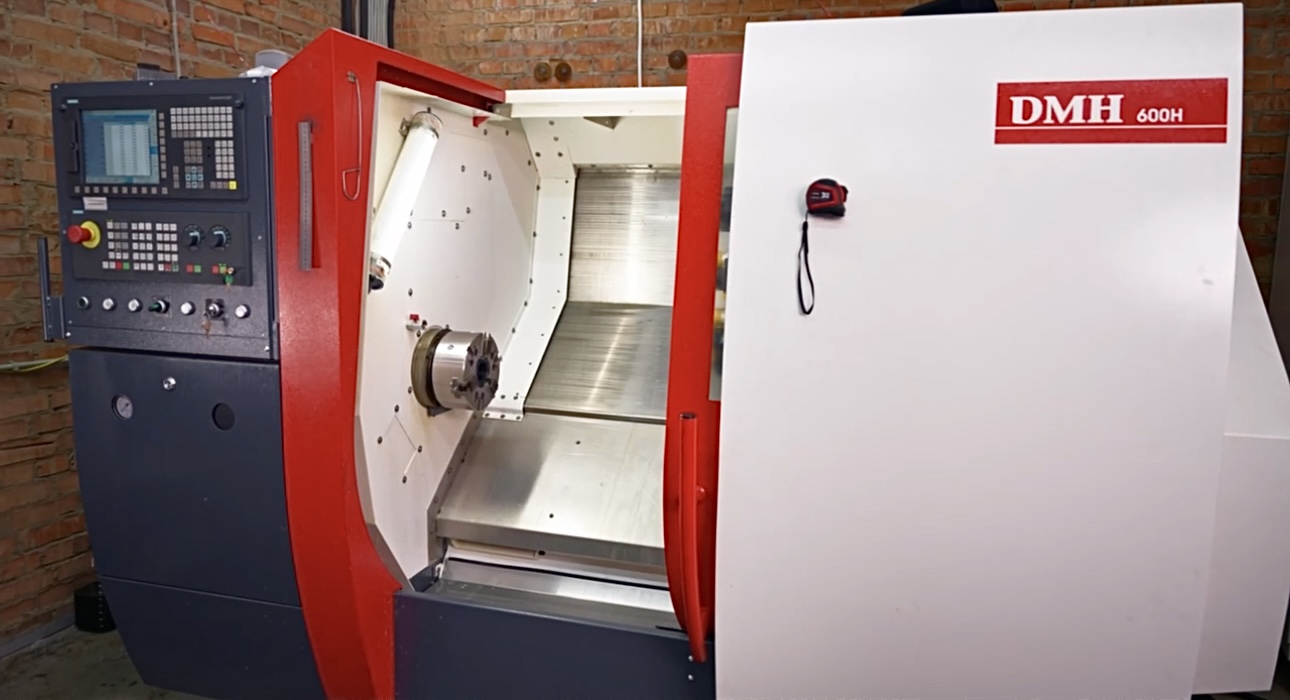

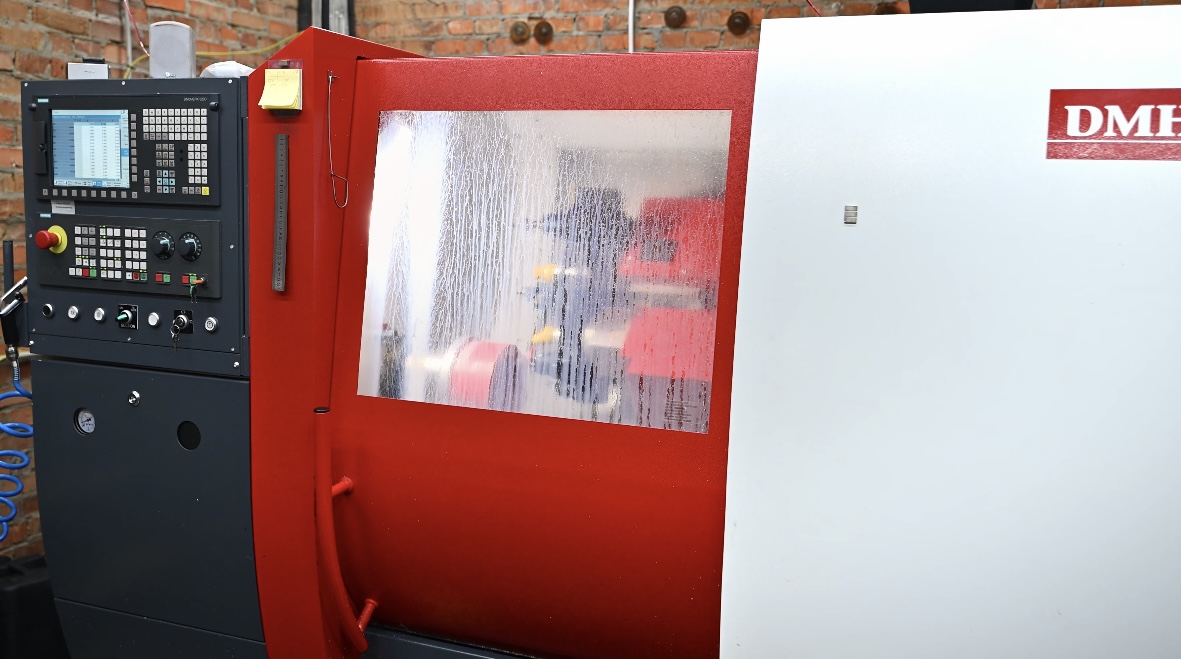

Modern equipment
All work is carried out on advanced equipment, which allows us to produce seals of any, even the most complex, profile.
-
Wide product range
The company offers various types of seals, including rod seals, piston seals, dirt wipers, guide and support rings, as well as rotary seals.
-
Fast manufacturing
We manufacture seals as quickly as possible, with production time depending on the complexity of the profile and the number of items.
-
Wide size range
The size range of manufactured seals varies from 5 mm to 600 mm and more, which allows us to meet the needs of different clients.
-
Custom approach
Possibility to manufacture seals taking into account the specifics of the operating environment, such as frost resistance, hardness, resistance to aggressive media.
-

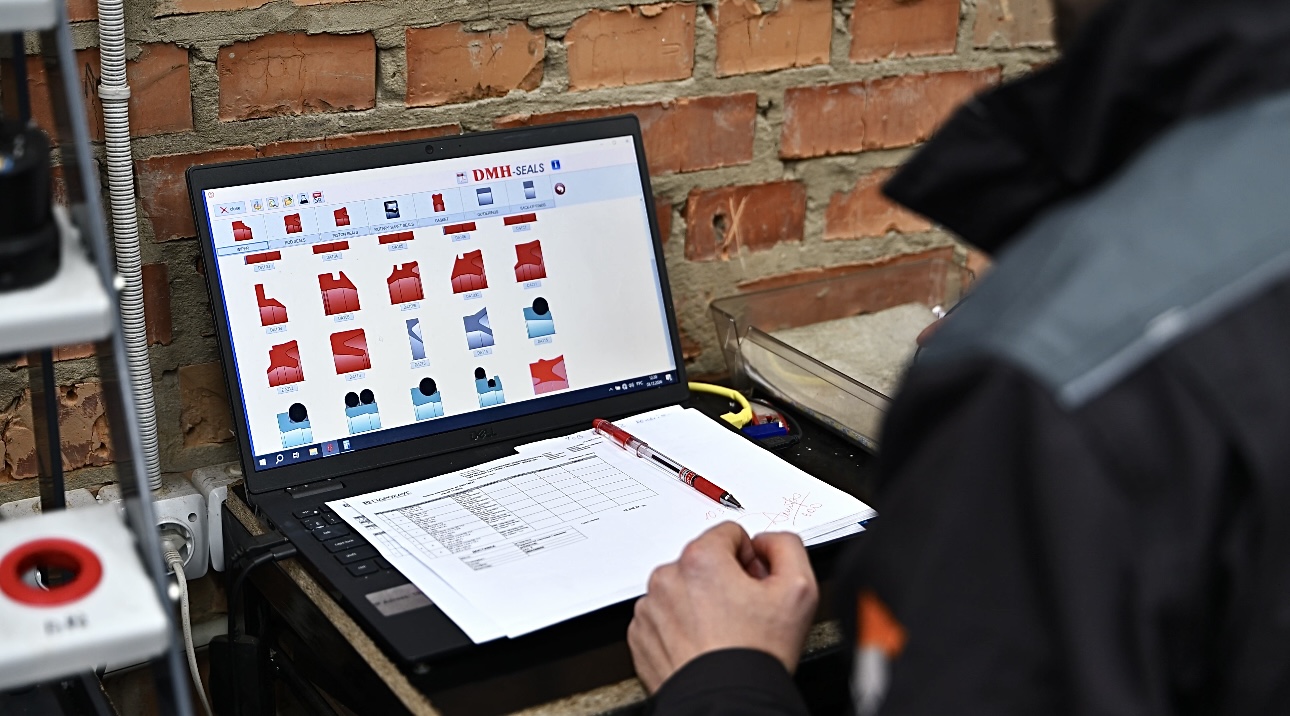

Convenient online calculator
For regular clients, the company offers a convenient way to calculate the production of seals online, which simplifies the ordering process.
ADDITIONAL SERVICES AND RELATED PRODUCTS
-
Assorted seal ring kits — complete sets of various types and sizes
-
Custom-made copper washers
-
SAE flange seals — for high-pressure connections
-
Metal-rubber rings — copper or steel core with rubber coating
WE MANUFACTURE SEALS OF ANY PROFILE AND SIZE
We work with drawings, samples, and specific operating conditions.
FREQUENTLY ASKED QUESTIONS
Find answers to the most common questions about our hydraulic seals
We manufacture various types of hydraulic seals including rod seals, piston seals, dirt wipers, guide and support rings, as well as rotary seals. Our product range covers seals for different hydraulic and pneumatic systems.
We use high-quality materials from leading European manufacturers, including various types of rubber compounds, polyurethane, and other specialized materials that ensure durability and reliability of our products.
Our seals are manufactured in a wide size range from 5 mm to 600 mm and more. This allows us to meet the needs of different clients and various applications.
Production time depends on the complexity of the profile and the number of items. We manufacture seals as quickly as possible while maintaining high quality standards. Contact us for specific timing estimates.
Yes, we offer custom seal solutions taking into account specific operating conditions such as frost resistance, hardness, and resistance to aggressive media. We work with drawings, samples, and specific requirements.
For regular clients, we offer a convenient online calculator to estimate seal production costs. You can also contact our specialists directly for detailed calculations based on your specific requirements.
